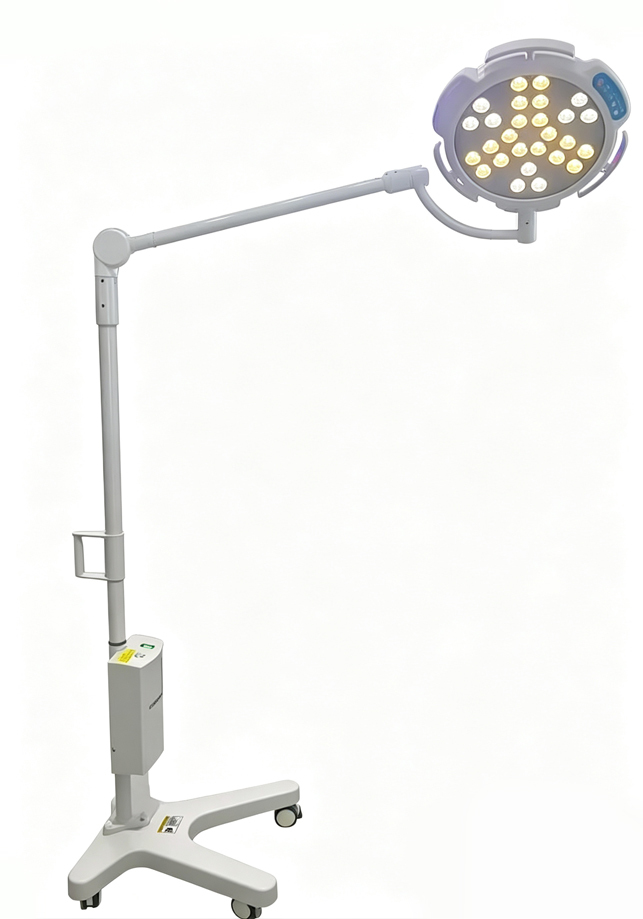

Mobile LED Examination Lamp

  • Mobile LED Examination Lamp
Place of Origin China
Brand Name Mango
Certification CE
Model Number MXLED 300
Minimum Order Quantity 1 unit
Price 350USD/unit
Packaging Details Plywood case
Delivery Time 10-15 days
Payment Terms T/T
Supply Ability 100 units/week
Product Details
Arm Joint Type Spring Type Joint Arms Classification Class 1 (MDD 93/42 EEC)
Standards EN 60601-1, EN 60601-2-41 Illumination(LX) ≥40000 Lux
Color Temp 4300±500K CRI(Ra) ≥90
Spot Diameter (d50) / Mm 65 Illumination Depth / Mm 80
Brightness Adjustment Adjustable (3%±1 ~100%) Temperature Rise At Surgeon’s Head ≤2
Power Supply 110-130/220-240 V, 50/60 Hz Battery Optional(20hours)
Bulb Service Life More Than 60,000 Hours Bulb Number 27pcs
Warranty 1 Year
Leave a Message
Product Description

Product Overview

The MXLED300 is a portable, lightweight and flexible mobile LED examination lamp tailored for clinical scenarios. It features multi-level adjustable illuminance and color temperature, as well as a one-button laparoscope mode, making it an ideal lighting solution for examinations across various departments and auxiliary lighting for general outpatient surgical procedures.

Key Features

  1. Portable & Flexible Mobile Design Equipped with a caster base, the lamp is lightweight and easy to maneuver between consulting rooms, treatment rooms and operating areas. Its compact structure adapts to diverse clinical layouts flexibly.
  2. Fully Adjustable Optical Performance
    • Stepless brightness adjustment (3%–100%) and tunable color temperature allow clinicians to set the optimal lighting for different procedures.
    • One-button laparoscope mode delivers specialized light output optimized for endoscopic and minimally invasive operations.
    • High color rendering index (Ra ≥ 90) enhances contrast between blood vessels and tissues, enabling clear visualization of anatomical structures.
    • Uniform light spot with 80mm effective illumination depth provides shadow-free, consistent lighting for deep surgical fields.
  3. Multi-Angle Precise Positioning The spring-balanced articulating arm supports smooth and stable adjustment across a working height range of 1.2m to 1.8m above ground. It enables full angular positioning to meet lateral, overhead and oblique lighting demands for various examination and surgical postures.
  4. Safe Cold Light & Long Service Life Adopting LED cold light technology, the lamp emits no ultraviolet or infrared radiation, with temperature rise at the surgeon’s head limited to ≤2℃ to reduce thermal discomfort during long procedures. The LED light source has a service life of up to 50,000 hours, lowering maintenance costs.
  5. User-Friendly & Reliable Operation Controlled via a base power switch and a lamp-head brightness knob for intuitive operation. Class I (Type B) safety rating and robust structure ensure stable and safe daily clinical use.

Features:

Mobile LED Examination Lamp

Specifications



Item MXLED300 Examination Lamp
Illuminance ≥40000 Lux
Color Temperature 4100±500 K
Color Rendering Index ≥90
Spot Diameter (d50) / mm 65
Illumination Depth / mm 80
Brightness Adjustment Adjustable (3%±1 ~100%)
Temperature Rise at Surgeon’s Head ≤2℃
Irradiance for wavelength ＜400 nm / (W/㎡) ≤0.002
Lamphead Diameter 180 mm⚠️Source document printed as 180 cm, this is presumed typographical error
Storage & Transport Temperature -40℃～+55℃
Storage & Transport Relative Humidity 10%～90%
Power Supply 220 V, 50 Hz
Input Power 50 W
Individual LED Power 1 W ×19 pieces
LED Service Life 50 000 hours

Product Configuration List

Number

Name

Quantity

1

Base

1

2

Pole

1

3

340° Balance Arm

1

4

Lamp holder

1

5

lamp holder lamp beads

27

6

Casters

4

7

Hexagon wrench s=3,s=4,s=6,

1 each

8

Small flat screwdriver

1

9

Phillips screwdriver

1

10

Certificate

1

11

User Manual

1

12

Product warranty card

1
