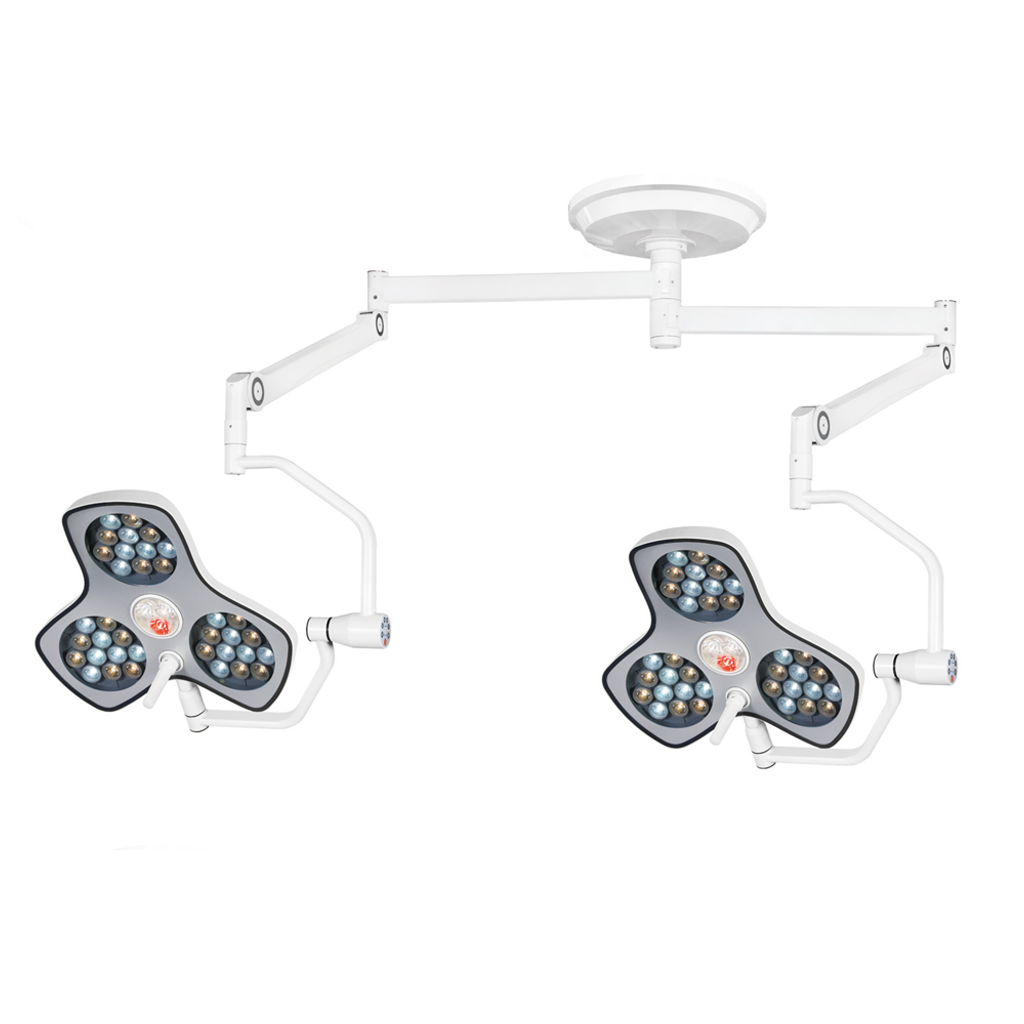

Double heads LED Operation Lamp
| Place of Origin | China |
|---|---|
| Brand Name | Mango |
| Certification | CE |
| Model Number | MSTZ4/MSTZ4 |
| Minimum Order Quantity | 1 unit |
| Price | 2000~2500USD/unit |
| Packaging Details | Plywood case + carton |
| Delivery Time | 10-15 days |
| Payment Terms | T/T |
| Supply Ability | 100 units/week |
Product Details
| Arm Joint Type | Spring Type Joint Arms | Classification | Class 1 (MDD 93/42 EEC) |
|---|---|---|---|
| Standards | EN 60601-1, EN 60601-2-41 | Illumination(LX) | 10000-160000 |
| Color Temp | 3000k~6700K | CRI(Ra) | ≥85 |
| Spot Diameter (mm) | 100-180±40 | Lighting Depth (mm) | ≥800mm |
| App. Model | Background Light/surface/deep Cavity /normal Mode | Dimming Control | 12 Shift Scales |
| Temp Rise At Surgeon's Head (degrees Celsius) | ≤1 | Temp Rise (degrees Celsius) | ≤2 |
| Power Supply | 110-130/220-240 V, 50/60 Hz | Max. Power Consumption | 120VA/120VA |
| Bulb Service Life | More Than 50,000 Hours | Bulb Number | 39/39 Pcs |
| Warranty | 1 Year | Ceiling Height For Installation(cm) | 270-320 |
Product Description
Perfect Cold Light Effect
Ideal Purification Requirements of Shape Design
Deep Lighting and Perfect Shadowless Effect
Human interface design
Unique counter balance offers drift-free performance
Specifications
Model: MSTZ4/STZ4
Illumination at 1m: 160000/160000 lux
Illumination at 1m on Endo mode: 10000 lux
Light field diameter at 1m: 10-28 cm
Light field diameter D10: 180±40 / 180±40 mm
Light field diameter D50: 110±35 / 110±35 mm
L1+L2 Depth of illumination: 150 cm
Color rendering index(Ra): 100≥Ra≥85
Working distance:70-140 cm
Optional color temperature: 3000K~6700K
Number of LEDs:39/39
Average bulb life:50000 hours
Heat-to-light ratio: ≤3.2 mW/m²lx
Power supply:110-240 V,50/60HZ
Max. power consumption:120VA/120VA
Ceiling installation height:270-320 cm
