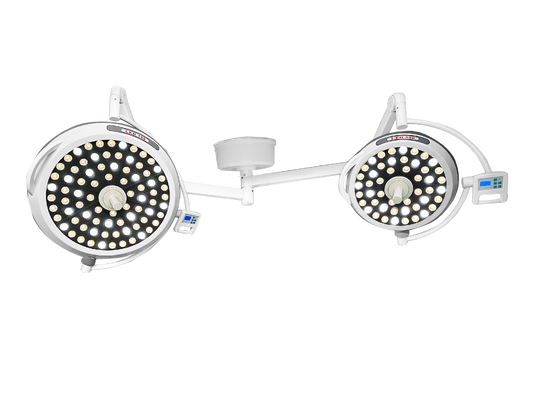

Economy model Double heads LED Operation Lamp MXLED700/500-D
| Place of Origin | China |
|---|---|
| Brand Name | Mango |
| Certification | CE |
| Model Number | MXLED700/500-D |
| Minimum Order Quantity | 1 unit |
| Price | 900~1100USD/unit |
| Packaging Details | Plywood case + carton |
| Delivery Time | 10-15 days |
| Payment Terms | T/T |
| Supply Ability | 100 units/week |
Product Details
| Arm Joint Type | Spring Type Joint Arms | Classification | Class 1 (MDD 93/42 EEC) |
|---|---|---|---|
| Standards | EN 60601-1, EN 60601-2-41 | Illumination(LX) | 10000-160000 |
| Color Temp | 4300±500K | CRI(Ra) | ≥85 |
| Spot Diameter (mm) | 160-300 | Lighting Depth (mm) | ≥800mm |
| App. Model | Background Light/surface/deep Cavity /normal Mode | Dimming Control | 10 Shift Scales |
| Temp Rise At Surgeon's Head (degrees Celsius) | ≤1 | Temp Rise (degrees Celsius) | ≤2 |
| Power Supply | 110-130/220-240 V, 50/60 Hz | Max. Power Consumption | 150VA/150VA |
| Bulb Service Life | More Than 60,000 Hours | Bulb Number | 80/48pcs |
| Warranty | 1 Year | Ceiling Height For Installation(cm) | 280-300 |
Product Description
Features:
- High Illumination Output: Central illuminance ranges from 110,000 to 160,000 lux with 10-step adjustable brightness.
- Long Service Life: LED service life over 60,000 hours to cut maintenance costs.
- Adjustable Color Temperature: CCT adjustable 4300±500K in 10 variable grades.
- Authoritative Certifications: Compliant with CE and ISO 13485 medical standards.
- Customization Available: OEM & ODM supported with full certification documentation.
- Full Standard Package: Complete with base, balance arms, control handles and installation tools for instant assembly.
Specifications
| Model | MXLED700-D | MXLED 500-D |
| Product Name | LED Operation Lamp | LED Operation Lamp |
| Lamp Features | LED | LED |
| Illumination(LX) |
100000-130000 (Adjustable to level 10) |
130000-160000 (Adjustable to level 10) |
| Color Temp | 4300±500K(10-level adjustable) | 4300±500K(10-level adjustable) |
| CRI(Ra) | ≥95 | ≥95 |
| Spot Diameter (mm) | 160-300 | 160-300 |
| Lighting Depth (mm) | ≥1200mm | ≥1200mm |
| LED life-span(h) | ≥60000 | ≥60000 |
| App. Model | background light/surface/deep cavity /normal mode | background light/surface/deep cavity /normal mode |
| Dimming Control | 12 shift scales | 12 shift scales |
| Temp Rise | ≤1 degrees Celsius | ≤1 degrees Celsius |
| Temp Rise at Surgeon's Head | ≤1 degrees Celsius | ≤1 degrees Celsius |
| Power Supply | 110-130/220-240 V, 50/60 Hz | 110-130/220-240 V, 50/60 Hz |
| Rated Voltage | 24V | 24V |
| LED bulb power(W) | 1W each LED bulb | 1W each LED bulb |
| color of light body | White/yellow | White/yellow |
| diameter of light head | 700mm | 500mm |
| Bulb number | 80 pcs | 48 pcs |
| Optimal installation height (mm) | 2800-3000 | 2800-3000 |
