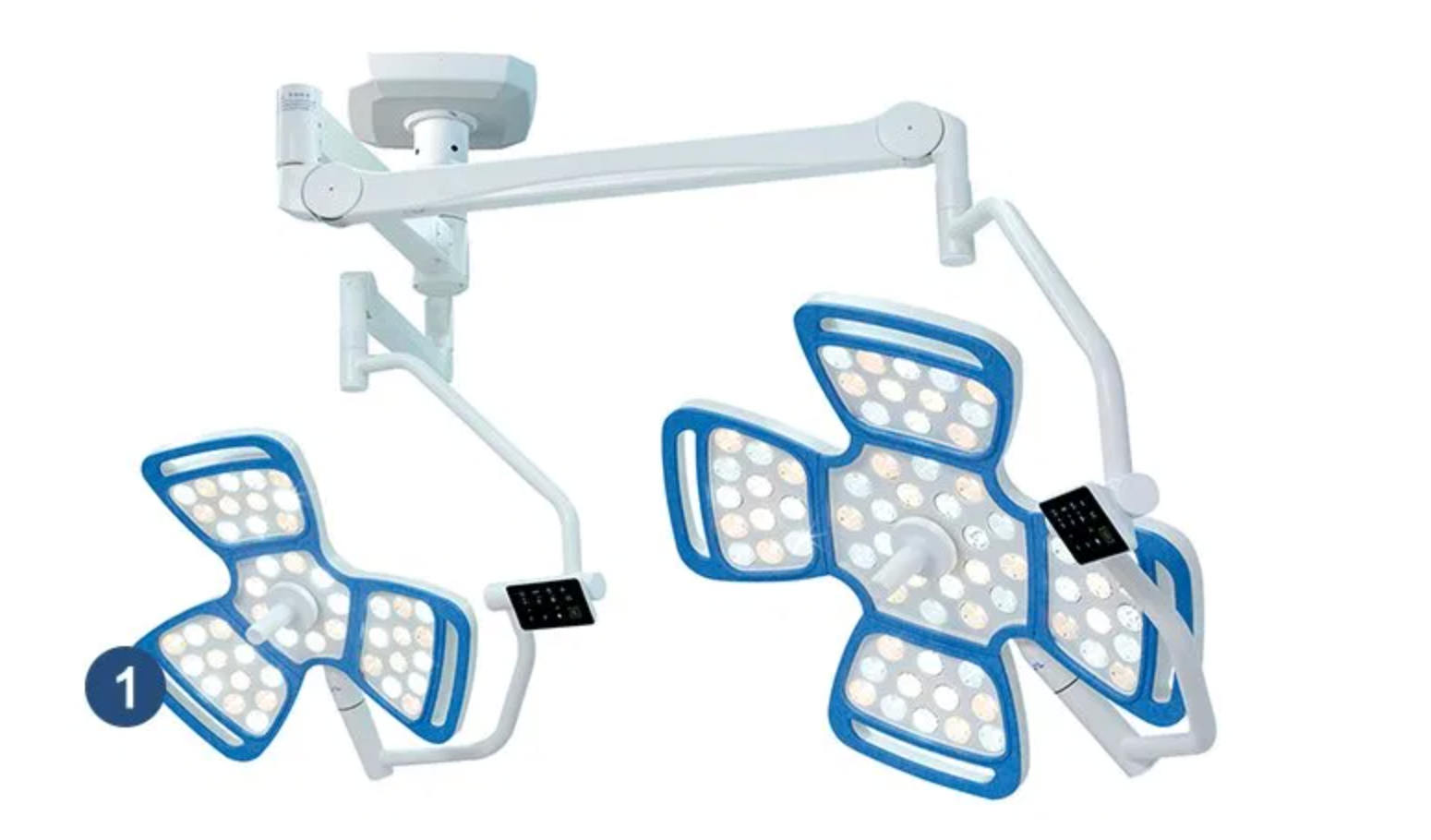

Double heads LED Operation Lamp MXLED700/500
| Place of Origin | China |
|---|---|
| Brand Name | Mango |
| Certification | CE |
| Model Number | MXLED700/500 |
| Minimum Order Quantity | 1 unit |
| Price | 2000~2500USD/unit |
| Packaging Details | Plywood case + carton |
| Delivery Time | 10-15 days |
| Payment Terms | T/T |
| Supply Ability | 100 units/week |
Product Details
| Arm Joint Type | Spring Type Joint Arms | Classification | Class 1 (MDD 93/42 EEC) |
|---|---|---|---|
| Standards | EN 60601-1, EN 60601-2-41 | Illumination(LX) | 10000-160000 |
| Color Temp | 3500k~5000K | CRI(Ra) | ≥85 |
| Spot Diameter (mm) | 150-300 | Lighting Depth (mm) | ≥800mm |
| App. Model | Background Light/surface/deep Cavity /normal Mode | Dimming Control | 10 Shift Scales |
| Temp Rise At Surgeon's Head (degrees Celsius) | ≤1 | Temp Rise (degrees Celsius) | ≤2 |
| Power Supply | 110-130/220-240 V, 50/60 Hz | Max. Power Consumption | 150VA/150VA |
| Bulb Service Life | More Than 50,000 Hours | Bulb Number | 68/45pcs |
| Warranty | 1 Year | Ceiling Height For Installation(cm) | 270-320 |
Product Description
Features:
- High Illumination Output: Central illuminance ranges from 110,000 to 160,000 lux with 10-step adjustable brightness.
- Long Service Life: LED service life over 60,000 hours to cut maintenance costs.
- Adjustable Color Temperature: CCT adjustable between 3500K–5000K in 6 variable grades.
- Authoritative Certifications: Compliant with CE and ISO 13485 medical standards.
- Customization Available: OEM & ODM supported with full certification documentation.
- Full Standard Package: Complete with base, balance arms, control handles and installation tools for instant assembly.
Specifications
| Lamp head model | MXLED 700 | MXLED500 |
| Number of lamp beads | 68 | 68 |
| Center Illuminance(LUX) | 110000-160000 (10 levels adjustable) | 110000-160000 (10 levels adjustable) |
| Color Temperature(K) | 3500-5000 (6 levels adjustable) | 3500-5000 (6 levels adjustable) |
| Color Rendering Index (Ra) | ≥96% | ≥96% |
| Spot diameter (mm) | 150-300 | 150-300 |
| Light beam depth (mm) | ≥1200 | ≥1200 |
| Irradiance(W/m2) | ≤400 | ≤400 |
| Head temperature rise(ºC) | ≤1 | ≤1 |
| Temperature rise in the surgical working area | ≤2 | ≤2 |
| Operating radius(mm) | ≥2200 | ≥2200 |
| Working radius(mm) | 600-1800 | 600-1800 |
| Supply voltage | 220V±22V 50HZ±1HZ | 220V±22V 50HZ±1HZ |
| Input Power | 150VA | 150VA |
| Average life-span of lamp(h) | ≥60000 | ≥60000 |
| Lamp power | 1W | 1W |
| installation height(mm) | 2700-3200 | 2700-3200 |
