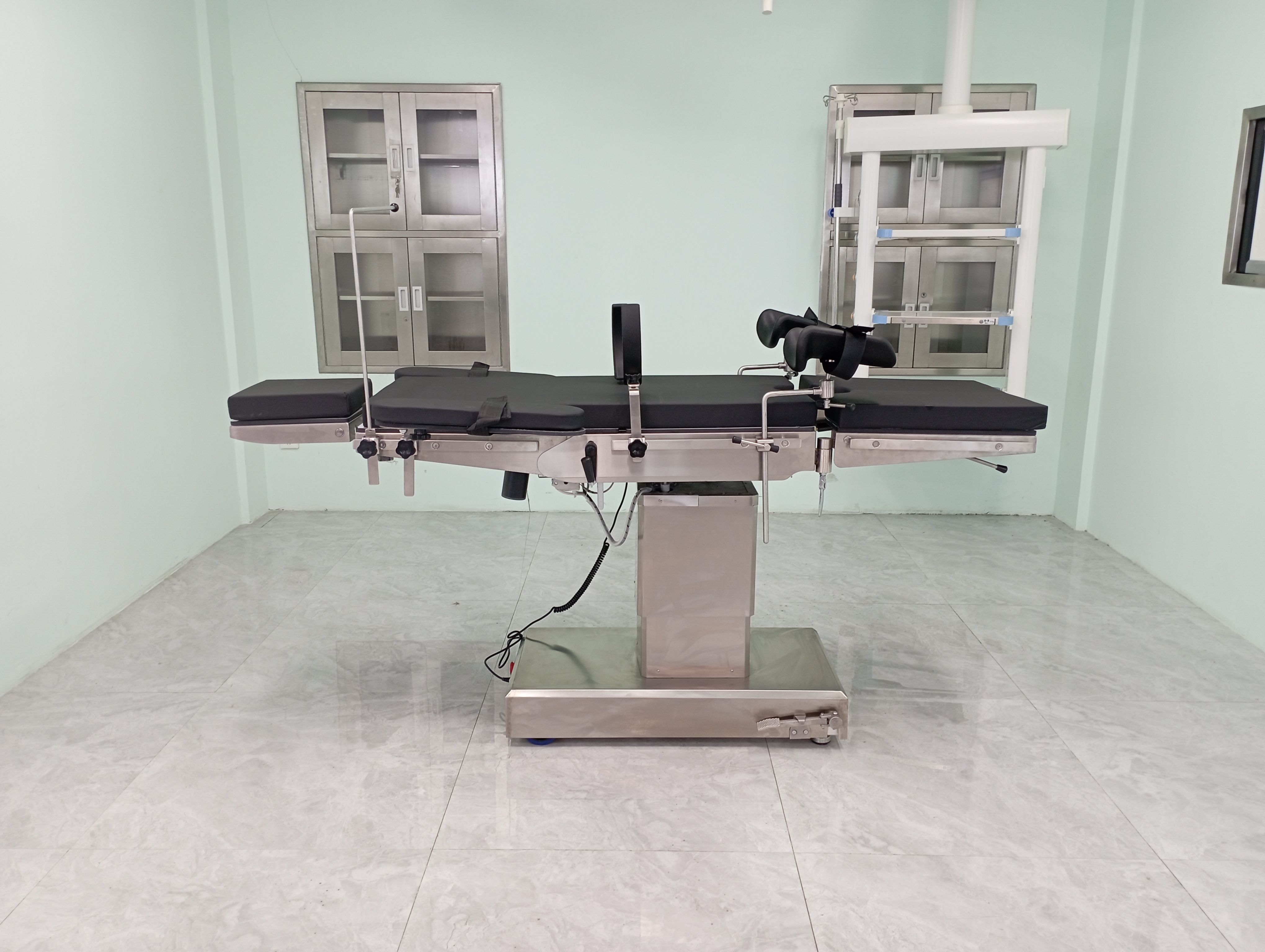

Electric Operation Table with parallel movement function

Place of Origin China
Brand Name Mango
Certification CE
Model Number MDT-100B
Minimum Order Quantity 1 unit
Packaging Details plywood case
Delivery Time 7 days
Supply Ability 100units per month
Product Details
Product Model MDT-100A Dimension 2010x500mm
Leave a Message
Product Description

MDT-100B Economic Model Electric General Operating Table is suitable for general surgeries in thoracic surgery, abdominal surgery, neurosurgery, ophthalmology, otolaryngology, obstetrics and gynecology, urology, orthopedics and other departments.
Product Advantages
1. All major position adjustments including table lifting/lowering, forward/backward tilting, left/right tilting, back plate up/down folding and table longitudinal translation are controlled by buttons and driven by electric push rods.
2. The tabletop supports longitudinal movement. It can be matched with C-arm for radiographic examination and filming. The table board is made of high-strength melamine resin plate, equipped with 7cm memory foam mattress.
3. The leg plates are detachable, with manual rotation, abduction and downward folding functions. The adjustment is flexible and convenient, especially suitable for urological surgeries.
4. The hand controller adopts 24V DC power supply, featuring simple operation, safety and reliability.
5. Equipped with high-performance rechargeable battery, it can support more than 50 operations under power-off condition. The battery is maintenance-free and can be used for a long time. Meanwhile, it is compatible with AC power supply to ensure maximum operational safety.







Dimension 2010x500mm
Power Source Electrical
Power & voltage & current (AC)110-130/220-240V,50-60Hz
Flow Rate Range: 0.1-1200Ml/h
Material 3mm Stainless steel 304#
Lowest and Highest Table Height 700-100mm0
Elevation(up/down) 300mm
Left/Right Lean ≥ 20°
Reverse Trendelenburg (Tilt)/Forward Lean ≥25°
Trendelenburg (Tilt)/Backward Lean ≥20°
Head Board (detachable) up ≥50°(up);
Head Board (detachable) Down ≥90°(down)
Back Board up ≥75°(up)
Back Board down ≥10°(down)
Leg Board (detachable) Down ≥90°
Leg Board (detachable) Outward ≥180°
Kidney Bridge (optional)up/down ≥120mm
parallel movement ≥300mm (MDT-100B)
Use Medical equipment operating table
Max loading 135KGS
Warranty 1 year
After sale service Lifetime
Net weight 160kgs
Container Load: 20'GP 14PCS, 40'GP 28PCS
Accessories Quantity
Square Clamp I 5pcs
Square Clamp II 2pcs
Arm Rest 2pcs
Chest&Waist Supporter 2pcs
Leg-Crutches 2pcs
Shoulder Supporter 2pcs
Supporter 1pc
